The extracellular matrix: for tissue engineering

The extracellular matrix: Structure, composition, age-related differences, tools for analysis and applications for tissue engineering

The extracellular matrix is a structural support network made up of diverse proteins, sugars, and other components. It influences a wide number of cellular processes including migration, wound healing, and differentiation, all of which is of particular interest to researchers in the field of tissue engineering. Understanding the composition and structure of the extracellular matrix will aid in exploring the ways the extracellular matrix can be utilized in tissue engineering applications especially as a scaffold. This review summarises the current knowledge of the composition, structure, and functions of the extracellular matrix and introduces the effect of ageing on extracellular matrix remodeling and its contribution to cellular functions. Additionally, the current analytical technologies to study the extracellular matrix and extracellular matrix–related cellular processes are also reviewed.


The extracellular matrix (ECM) is responsible for the physical maintenance of all cells. However, the concept that the ECM has a passive role to play in cellular activity has been refuted. It is now known to play a part in numerous cellular processes including cell proliferation,differentiation and migration. The ECM can be defined as the non-cellular component of tissues, which has been likened to ‘glue’ that binds cells together in connective tissues, where it is a major constituent of the tissue.


Composition of the ECM

Proteins The ECM can be considered as being constructed from multiple matrix proteins, forming the principal component of the ECM . It is these proteins that provide the necessary support to cells and tissues. The proteins that constitute the ECM can be categorized as either structural or non-structural (also known as glycoproteins), depending on their function. Examples of structural proteins include collagens and elastin, with fibronectin, laminin and tenascin instances of non-structural proteins. Other important components of the ECM include integrins, growth factors (GFs) and a group of MMPs.


Collagens

Collagen is the most abundant protein within the body and is found amassed in the ECM of connective tissues such as the tendon and skin. Collagens are the predominant form of structural proteins found within the ECM providing not only tensile strength but also play a role in other cell processes such as adhesion and migration. There are almost 30 types of collagen that have been distinguished, although not all are isolated to the ECM.

Here, the collagen is arranged into fibrils to provide the required structural integrity for the tissues. Specifically, this fibril formation is restricted to collagen types I, II, III, V, and XI. The fibril arrangement imparts tensile strength to connective tissues that are required to withstand different mechanical stresses like tension, shear, and pressure. There are indications that collagen fibril formation is strictly regulated by other ECM molecules such as decorin and fibromodulin. Included in this process are also cell surface receptors like integrins. Integrins are made up of an alpha (α) and beta (β) subunit which combines to form a heterodimer; among the various types of integrins are four known collagen receptors; two of these receptors α1β1 and α2β1 are well recognized. The roles of these receptors have been established, with α1β1 responsible for controlling the production of collagen through negative feedback, whereas α2β1 has the opposite effect of increasing collagen matrix synthesis and turnover.

Collagen type I is the dominant form found extensively in almost all tissues, particularly in tendons and the skin. The other forms of collagen occur in defined areas, for example, type II collagen is found in cartilage and the cornea, while collagen type III is the principal form within the walls of blood vessels. Collagen is produced not only by fibroblasts but also endothelial cells and epithelial cells.

Elastin

Elastin is the other structural protein, with its role closely linked with collagen. It provides tissue such as the dermis of the skin with the ability to recover from continuous stretching, alongside the glycoproteins including fibrillin and fibulin. However, in tendons, it only forms approximately 2% of their dry weight. Despite this, it plays a crucial role in allowing the crimp structure of the tendon to be stretched and recoil, which is crucial to the function of the tendon and other tissues such as the artery vessels. Its structure is composed of single tropoelastin subunits which are cross-linked with an outer layer of fibrillin microfibrils that make up an elastic fiber.

Fibronectin

Fibronectin has been studied to a lesser degree than collagen; it is located within the basement membrane (BM) of the ECM and it has been determined as having a key role in both cell adhesion and the wound healing response to injury. Additionally, fibronectin is critical to other processes in vivo such as embryonic development, as an absence of fibronectin has been observed as fatal in mice. The protein exists in two different forms, either as plasma that circulates in the blood and is one of the first components delivered by blood plasma to the site of injury or as a cellular protein that is created by fibroblasts.

Fibronectin is arranged into a mesh of fibrils similar to collagen and is linked to cell surface receptors (integrins). It is expressed by various cell types and is not unique to connective tissues. Fibronectin is produced in the form of a disulfide-bonded dimer that can be broken down into subunits, of which there are three different types (types I, II, and III) that are repeated within each subunit.

The integrin α5β1 is the principal receptor involved in the process of fibronectin matrix assembly which together with the RGD region (abbreviation for the tripeptide sequence of Arg-Gly-Asp) of fibronectin promotes binding of cells to the protein. The fibronectin matrix is associated with the actin cytoskeleton of cells through integrin activity. This connection is key to successful matrix formation and progress can be easily tracked via immunofluorescence staining of cells. Upon formation, fibronectin develops into fibrils that can differ widely in their thickness between 10 and 1000 nm.

Laminins

Laminins are another type of glycoprotein, with a trimeric structure. They are made up of three different chains, α, β, and γ which exist in various genetically distinct forms. Through evolution, they have advanced from a sole laminin heterotrimer within low multicellular organisms to an excess of 16 unique trimeric isoforms in complex vertebrates. They were first recognized as a constituent of the ECM of murine Engelbreth–Holm–Swarm (EHS) sarcoma (Matrigel).

They are involved in cell adhesion, expressed by various tissue types including both muscle and epithelial cells. Laminins play a vital part in several cell processes including differentiation and migration via their integrins and they intercede between cells and the underlying matrix, namely, the BM where they reside. Laminins are among the first proteins of the ECM to appear in embryos. As mentioned, they are crucial to differentiation, to the degree that a defect in the genes that code for laminins can either have fatal results in the embryo or manifest as serious conditions that affect multiple organs. This is supported by the fact that laminins play an important role in different tissues such as nerves and blood vessels.

Tenascins

Tenascins are a group of ECM proteins and exist as five different manifestations, TN-C, TN-R, TN-W, TN-X, and TN-Y. Tenascins are typically found within connective tissues where load-bearing is required, although they also occur within the skin and brain. Consequently, tenascin levels have been linked to mechanical activity. Its expression is also influenced by the changes brought about by disease and development. In conjunction with this, the absence of tenascin-C interferes with regeneration processes, as it appears to be upregulated within the interim matrix following an injury; typically, it is not expressed in normal adult tissues’.

Other components

Growth Factors (GFs)

The ECM has been referred to as a ‘reservoir’ for GFs; a number of ECM components alter the actions of GFs within cell pathways accordingly. This will be briefly discussed here, however; several comprehensive reviews on GFs can be found elsewhere. Vascular endothelial growth factor (VEGF), fibroblast growth factor (FGF), and transforming growth factor β (TGF-β) are examples of GFs that are tied to the ECM through either heparin or heparan sulfate.

GFs are triggered into action by a variety of processes (not necessarily in a soluble form) including wound healing and tissue remodeling. As mentioned, mechanical stimulus induces the protein tenascin-C; there has been evidence that GFs are also responsible for its activation alongside mechanical stimulation. The crucial role of GFs in wound healing has been acknowledged by researchers, as demonstrated by the interest in exploring how they may positively impact on tendon repair in adults. However, GFs are vital to the development and differentiation of many other tissue types; they can be linked to issues with their names. For example, VEGF stimulates the formation of blood vessels, and nerve GF is involved in the growth of neurons.

Matrix Metalloproteinases (MMPs)

MMPs are the key group of protease enzymes involved in the disintegration of the ECM. Presently, dozens of MMPs have been identified; they are effective in their capacity to breakdown the matrix, as they overlap in substrate specificity. This breakdown of the matrix forms part of the on-going remodeling of the ECM. This transformation process is critical for the ECM of many tissues to undergo and, for example, occurs during neovascularization and bone remodeling.

When an increase in cytokine and GF activity occurs as a result of tissue repair, MMPs are triggered into action. As the actions of MMPs are detrimental to the ECM, they are tightly regulated using three mechanisms: primarily by managing them at transcription, by preserving them in a quiescent state prior to activation, and finally having tissue inhibitors of metalloproteinases (TIMPs) to counteract unwarranted damage to the matrix.


Structure and function of the ECM

The different components of the ECM are organized into a recognizable three-dimensional (3D) structure, which can be split into two main forms, the BM and interstitial matrix. Although differences exist between these two forms, the basic structural outline is alike. Various collagens form the framework of both and the non-structural proteins bind to this scaffold, communicating with surrounding cells via integrins.


Schematic of the composition and assembly of the ECM adapted from Griffith and Swartz

Basement Membrane (BM)


The main elements of the BM include collagen type IV, laminins, and fibronectin, the latter of which equips the overlying tissue with some tensile strength. It is known to be more dense and ‘less porous’ than the interstitial matrix. Perlecan is an important heparan sulphate proteoglycan (HSPG) of the BM binding to FGF and VEGF, thus influencing angiogenic processes. Hence, the BM is found in blood vessels in addition to epithelial and endothelial tissues, forming a highly organised matrix, with the epithelium ‘critically dependent’ on the BM to conduct its expected role. Integrins between the BM and the cells above convey messages regarding ‘cell shape and motility’.


Interstitial matrix


The interstitial matrix occurs in locations where the BM is found; however, in addition, it also appears between connective tissue cells such as tenocytes (within the tendon). The major elements that form this ECM include collagens, elastin, and fibronectin, creating a ‘3D amorphous gel’.Despite collagens constituting the majority of the fibrous proteins within the matrix, it is fibronectin that dictates the organization of the matrix structure. Each tissue within the body has its own distinctive ECM that differs in both composition and topographical features. The ECM is now acknowledged as an active environment, which is constantly experiencing changes in composition and structure. This occurs in response to the actions of surrounding cells. Consequently, the communication between cells and the ECM is essential to understanding how the ECM and cells learn to adapt to each other.


Functions of the ECM


There are multiple functions that the ECM conducts. For example, its role in cell migration is complex as it can provide itself as an anchorage site. Anchorage to the BM is critical for the process of cell division in stem cells. Furthermore, it can either help or hinder the migration of cells by acting to facilitate migration tracking or act as an obstruction to the migration of cells. These functions arise from the physical characteristics of the ECM.

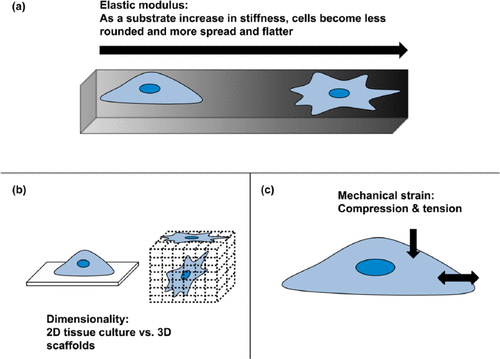

Various functions of the ECM adapted from Lu et al.

The biochemical properties of the ECM allow for it to directly and indirectly influence the way cells interrelate with their environment through different signal pathways, including behaving as a reservoir for GF signalling molecules. Particular ECM components such as proteoglycans will bind with GFs becoming either low-affinity co-receptors for signalling or signal presenters and impact on communications between cells. Another way in which the ECM passes signals to cells is through functional fragments that have first been managed by MMPs. Recently, the biomechanical properties of the ECM have been of specific interest to researchers and the way these properties change cellular behaviour in response to the degree of elasticity of the ECM, especially the process of cell differentiation. This will be explored in further detail later in the review.



How the ECM of cells is altered with age


As cells naturally undergo age-related changes, the BM underlying many tissues deteriorates. This is due to the effects of fewer BM proteins being formed and increased levels of MMP resulting in more proteins being broken down. Along with this, the cells experience higher levels of fibronectin, GFs, interleukins, and cytokines. It has been observed by many researchers that aged cells become impeded within the cell cycle to proliferating; this has been linked to telomere shortening.


As with elastin, the decline in the amount of collagen in tissues is associated with aging, weakening ‘tissue integrity and strength’. Greater stiffness observed in aging tissue has been attributed to further and unnecessary collagen cross-linking, resulting in compromised biomechanical properties and therefore ‘compromise ECM organization and function’. Additionally, the arrangement of the (type I) collagen fibres becomes less organised and more loose and fragmented.

This is observed in most aged tissues, particularly the skin.The alteration in the arrangement of the collagen fibers results in the cells being less able to bind to the ECM, which has a negative impact on the cell–matrix interactions. These differences in the organization of type I collagen fibers have been observed in tendons extracted from tails of young and old adult mice. Furthermore, alterations in the composition of the ECM of rat tail tendon have been detected from being low in collagen content and highly cellular in young rats following birth and 3 months of age. In older rats, the collagen content of the tendon is much higher and this results in the tissue displaying a greater stiffness.

As with other connective tissues, the balance between matrix synthesis and matrix breakdown in the skin shifts towards matrix breakdown with the aging process. This is demonstrated by a loss in the elasticity of the skin, also known as wrinkling. The loss in elasticity is due to the action of MMPs degrading the main constituents of the ECM such as types I and III collagen, proteoglycans, and glycosaminoglycans (GAGs). The loss of these ECM components together with increased cross-linking of collagens results in reduced biomechanical properties of the tissue with age.

In contrast to this, the levels of fibronectin (FN) have been shown to increase with age, as demonstrated with fibronectin isolated from the skin tissue of mice. This alteration in fibronectin expression has a detrimental effect on integrin–ECM binding, thus impacting the ability of cells to respond to environmental change, especially with age.

Within skeletal muscle, the ECM plays a critical role in the transfer of force and response of the tissue to mechanical loading. Animal studies conducted in rats reflected similar findings to other aging tissues, in that the collagen content of limb skeletal muscle increased exponentially with age. In contrast to this, these studies when repeated in humans showed that the collagen content of skeletal muscle remained relatively stable with age. This highlights that age-related changes within the ECM vary across tissue types and the ECM is modified in distinct ways between different species.

More recently, there has been renewed interest in the subject; first, this can be linked with attempting to understand the conceivable relationship linking age-related changes in cells and the advance of diseases such as cancer. Second, to investigate the differences behind reparative wound healing in adults, in contrast to regenerative wound healing as seen in the fetus and how the age-related decline in the ECM of soft tissue has bearing on these disparities in wound healing.


How ageing ECM affects wound healing


The ECM experiences a multitude of changes during wound healing in an adult from the initial steps instantly the following injury to the establishment of the collagenous scar tissue that signals the end of the healing process. Wound healing in a foetus occurs in an opposing fashion, and this has been confirmed in many tissue types, most notably the skin, but also tendon, articular cartilage and bone. Differences in the healing models of adults and foetuses have been observed in terms of the inflammatory reaction, GF levels and gene expression of proteins along with ECM constituents. This regenerative capability of the foetal tissue is confirmed to be inherent to the tissue. Thus, the age-related changes to the ECM and its impact on cell–matrix interactions are vital to understanding.


Adult wound healing

In adults, the ECM plays an active part in the proliferative phase and remodelling phase of the wound healing process. During the proliferative phase, fibroblasts initiate deposition of the ECM, following their migration into the wound site. This is referred to as the provisional matrix. Tenascin-C of the tenascin family of matricellular proteins plays a key part in encouraging fibroblasts to the injury site to generate the provisional matrix made up of fibrin and fibronectin. The provisional matrix allows for cell adhesion and migration to occur and granulation tissue replaces the interim matrix. This granulation tissue is abundant in fibronectin and provides a vascular system for collagen to be laid down. Collagen forms the main component of the final ECM and is commonly known as scar tissue. The collagenous matrix is formed in the remodelling stage and increased cross-linking of the collagen results in a stiffer matrix. Although collagen is crucial to restore the structure and function of the tissue at the wound site, excess collagen is detrimental to the tissue, causing a destabilised structure due to the presence of a fibrotic scar that replaces the former tissue. This scarred tissue is an issue for clinicians, as the function of the tissue is hampered, and currently, no successful solution exists to restore the former properties of the healed tissue. Therefore, understanding the changes to the ECM that occur with age that result in the different healing mechanisms between adult and foetal healing is critical to developing a way of healing adult wounds through a regenerative process. Revealing these age-related differences in the ECM could result in new methods being created through tissue engineering techniques to encourage adult injuries to repair without scar formation. This will be explored in further detail in a later section.

Techniques to analyse the ECM

There are several techniques that can be utilised for analysing the ECM; some of these are well-established, for example, confocal microscopy and electron microscopy. Other methods such as Raman spectroscopy are being explored as new ways to examine ECM structure and composition, requiring little or no sample preparation. These approaches allow for the composition, structure and biomechanical properties of the ECM to be examined. A selection of these will be detailed here with a brief outline of their basic principles and what they can reveal about the ECM.

AFM

The elastic modulus (E) is the standard way of calculating the amount of stretching of a substrate in response to a given level of stress. Researchers have employed AFM in the past few years as a reliable method to measure the mechanical properties in terms of stiffness (Young’s modulus) of a matrix. Attention has been brought to the way that the mechanical properties of the ECM influence the differentiation profiles of mesenchymal stem cells (MSCs). More recently, researchers confirmed AFM as a valid method to monitor differentiation of stem cells into tenocytes, by measuring the changes that occurred in elastic modulus at a cellular level. It has been demonstrated that the mechanical properties of a substrate have consequences in the cell ‘contractility, motility and spreading’, for example, cells on a soft gel substrate form ‘dynamic adhesions’, whereas on stiffer substrates they formulate ‘static focal adhesions’. The technique works through two main components, a sensor and detector. The detector calculates the sensor’s reaction to forces; this sensor is in the form of a cantilever beam that responds to the forces it receives by contorting, and the detector measures the deflection of the cantilever tip.Furthermore, there are three key modes of operation for AFM, contact, non-contact and tapping mode. For the interest of this review, tapping mode will only be discussed. Tapping mode was specifically developed to surmount the problems with contact mode and biological samples, including samples being damaged by the cantilever tip. It is this mode of AFM that is used in calculating the elastic modulus of ECM specimens, during which the contact between the tip and samples is kept to a minimum, thus averting damage to softer substrates. Additionally, samples with either wet or dry surfaces can be tested. Further advantages of AFM in ECM analysis include the ability to take measurements on three separate axis (x, y and z) providing 3D images of a sample surface. It is also a technique that does not require any prior sample preparation or particular environment in order to operate such as a vacuum. It has become a vital tool in revealing information on the study of mechanobiology and the relationship between cells and ECM stiffness. For example, it has been successfully employed to determine the changes that occur in the elastic modulus of osteoblast cells, as a result of adhesion to various ECM proteins such as FN. Moreover, AFM imaging experiments were utilised to demonstrate how binding to different substrates caused this increase in elastic modulus. For instance, the plating of osteoblasts on FN was found to be associated with ample fibre formation and remodelling of the cytoskeleton, which lead to an increase in the modulus of osteoblasts.

Immunostaining

Immunostaining of the ECM takes two main forms either immunohistochemical (IHC) staining or immunocytochemical (ICC) staining. Immunostaining is an effective qualitative way of evaluating the presence of individual proteins expressed within the ECM. It relies on specific antibody and antigen relationships via a visualization tag to identify the expression of definitive proteins. The sample preparation method differs between the two techniques; tissue samples for IHC need to be embedded in resin or paraffin and cut it into thin sections prior to staining. One of the most common ways to conduct IHC staining is to use hematoxylin and eosin (H&E) staining. Throughout the literature, there are several proteins that are surveyed, typically they include collagen type I, laminin, and fibronectin. In contrast to this, to examine ECM proteins at a cellular level, ICC staining is employed. IHC staining has been successfully exercised in tendon fibroblasts to determine the expression levels of proliferation cell nuclear antigen (PCNA) and α-smooth muscle actin (α-SMA), which are released by healing tendon fibroblasts. The fibroblasts are responsible for synthesizing the ECM during the wound healing process. IHC was able to measure the increasing levels of PCNA and α-SMA post-injury. Additionally, IHC has been utilized to examine the composition of the ECM in human coronary arteries where, for example, collagen type IV has been detected to be underlying the endothelium equivalent to the position of the basal lamina. Moreover, it efficiently detected the presence of proteoglycans such as biglycan and decorin, which are crucial components of tissues in blood vessels and are implicated in vascular disease.

ICC staining examines the composition of the ECM at a cellular level. Similar to IHC, ICC staining was carried out on tendon fibroblasts observing expression levels of PCNA and α-SMA, although the tendon cells were inspected as per the basic principle. This enabled the demonstration of the differences in tendon fibroblasts that were synthesised from an intact tendon to a tendon post injury undergoing the wound healing process. Recently, this staining technique has been utilised to observe the modifications, in protein expression of the cartilage matrix proteins in tenocytes during development, which include collagen type I and aggrecan.

Confocal microscopy

Confocal microscopy is typically used in conjunction with immunostaining; one of the most important aspects of this imaging technique is that it allows for 3D analysis of samples. A confocal microscope generates sharp images of a sample that would appear blurred if they viewed via a conventional light microscope.These 3D images are attributed to the confocal microscope’s ability to significantly reduce the light from out-of-focus planes. Moreover, this results in enhanced lateral resolution. It is particularly useful for examining the 3D architecture of the ECM through z-stacked two-dimensional (2D) images. Confocal microscopy was used to examine the general composition and structure of the fibroblast-synthesised ECM by obtaining z-stacked images to display the conformation, distribution and orientation of proteins including FN, collagen type VI and elastin. These images were fairly detailed, highlighting the x- and y-axis projections of the z-stacked images where spatial overlap between the proteins was displayed. Moreover, quantitative differences of the various protein networks (elastin network and FN network) were detected. Overall, these findings demonstrated confocal microscopy can be used not merely to determine the structure of ECM constituents but also their role in the organisation of ECM components. This enables high-resolution 3D images of the ECM and its various constituents to be built up, allowing researchers to discern more information about the ECM environment, namely, the organisation and distribution of proteins and determining the level of protein deposition. Thus, it could provide important structural insight into how this environment is altered by age-related changes.

Tandem mass spectroscopy

Tandem mass spectroscopy or Mass Spectroscopy/Mass Spectroscopy (MS/MS) is being an increasingly popular way of characterising the profile of ECM proteins by examining the individual peptides that constitute them and can be viewed as a complementary quantitative technique to immunostaining. MS/MS incorporates a combination of two mass spectrometers where the first spectrometer selects an individual mass (precursor), which represents an analyte in the mixture. Mass selected ions subsequently pass through a region where they are activated to produce fragment (product) ions, which is carried out via the collision of ions with a neutral gas in a process termed collisional activation. The second-stage mass spectrometer discerns the fragment ions depending on mass, thus generating an MS/MS spectrum, which consists of merely product ions from the precursor selected.

It can provide detailed analysis of overlapping proteins that are shared between differing sources of ECM and highlight any unique proteins present in individual cases. In terms of quantitative results, MS/MS was utilised in humans to detect 300 peptides where 25 of these exhibited the existence of ECM proteins such as FN, fibrillin and an ECM protein known as frasl. Frasl is known to have an essential role in structure and cell signalling. MS/MS has been employed to detect other ECM proteins through identification of peptides including fibrillin-1, laminin, elastin and lumican, which is a keratin sulphate proteoglycan. Transmission electron microscopy/scanning electron microscopy Transmission electron microscopy (TEM) and scanning electron microscopy (SEM) are opposing microscopy techniques that both work on the principle of using electrons to visualise a substrate.


Briefly, SEM focuses on the surface to build up a 3D image of a substrate’s topography; whereas in TEM, as the name suggests, it involves transmitting electrons at a sample, which pass straight through providing a 2D image of the inner structure. In typical analysis of the ECM, researchers have favoured using TEM in order to view the ultrastructure. SEM has been employed to investigate the ECM of rat tail tendon. The conformation of the ECM in tendon could be detected where the GAGs were seen interwoven with the collagen fibrils. Additionally, it could also be demonstrated that while some GAG filaments merely interacted with one fibril, others made contact with many fibrils simultaneously. SEM has also been previously used effectively to observe the shape and organisation of laminin and FN where, for instance, laminin was found to be imaged as a ‘rigid asymmetric cross consisting of a long and three identical short arms’ and FN consisting of two identical strands with single peptide chains. Furthermore, the SEM has been successfully utilised to detect synthesis of and thus image ECM material.

TEM has been effectively applied in order to quantify the differences between young and aged 3D collagen gels in mice tail tendons. It was used to directly assess the substantial modifications that occur in fibril diameter and density as a result of the transition from a young mice phenotype to an aged mice phenotype. Both these quantities exhibited a decrease with age highlighting the inability of senescent collagen to form a 3D matrix in comparison to young collagen.58 Moreover, these findings were corroborated by previous evidence where reduction in collagen fibril density corresponds to the tensile strength of collagen polymerised in vitro.These are a few examples of the extensive use of the TEM to characterise many aspects of the ECM as well as the modifications it undergoes.

Gelatin substrate zymography

Gelatin substrate zymography (GSZ) is usually used in detection of MMP, in particular MMP-2 and MMP-9. MMPs are enzymes that are known to degrade the ECM; this procedure takes advantage of the fact that MMPs are recognised by their molecular weight and the ‘degradation of their preferential substrate’. This method enables one to determine whether the MMPs are in an active or latent form. Generally, the most frequently employed substrate is gelatin for MMP-2 and MMP-9. It is based on the sodium dodecyl sulphate–polyacrylamide gel electrophoresis (SDS–PAGE), which consists of a substrate co-polymerised with polyacrylamide gel in order to observe enzyme activity based on molecular weight separation. Substrate zymography is generally considered to be the most suitable method to use in order to detect MMP activity from a variety of biological samples as it can be used for screening drugs and as mentioned discerns the latent MMPs from the activated MMPs. However, it does have a fairly length protocol (2 days), but nevertheless it is still broadly used for observation of MMP activity.

Raman spectroscopy

One of the biggest advantages of Raman Spectroscopy is that unlike all the techniques mentioned above, it does not require any prior sample preparation. Despite this, it is still a relatively new analysis method for characterising ECM. Raman spectroscopy can be used to evaluate the rate of ECM synthesis and the rate of the biochemical components of the ECM synthesised. Its non-invasive nature enables modulation of the growth and progression of the ECM by numerous cells on an array of scaffold materials bared to stimuli including GFs and mechanical forces. Again, it is typically used in conjunction with other analysis methods to confirm the presence of specific components of the ECM. The operation of Raman spectroscopy is based on the traditional ‘Raman effect’. Incident light or photons are scattered from a sample in an inelastic manner and shifted infrequency via the distinguishing vibrational energy of the molecular bond. Molecular bonds are probed concurrently while a Raman spectrum is produced, which acts as a ‘molecular fingerprint’ representing the total biochemical components of the sample. The Raman signals generated from the spectrometer are linearly correlated with the number of molecular bonds that occur in the sample; thus, quantitative data can be obtained from the spectrum.

SHGM

SHGM works on the basis of ‘nonlinear optical effect’ as a result of photons coming into contact with a nonlinear substance and merging to create new photons with half the wavelength and twice the frequency of before. It is a three-level process and the second-harmonic photons are produced virtually instantly in order to generate a clear second-harmonic signal that is discharged primarily in the forward direction. In the same way that Raman spectroscopy does not require sample preparation, SHGM is an emerging technique that has been effectively used in other applications such as drug delivery,and now attention has turned to it being used for identifying collagen fibers within cells and tissue. SHGM was employed to demonstrate the differences in collagen bundle distribution, length and packing between normal skin and burn scar tissues. This was shown in human, ovine and porcine dermal tissue. SHGM displayed an increased resolution of individual collagen bundles in scar tissue. This study was important as it showed that SHGM can be proficiently used to inspect the collagen architecture in tissues and it can also be done without any prior staining. SHGM has been associated with several dermatological studies over the last decade. Overall, this technique is clearly vital and efficient for observing fibrillar collagen structures both in a normal state and as a result of pathological changes that occur.

Overall, there is clearly an extensive range of analytical techniques for characterisation in the ECM, and these are not merely limited to determining the composition and structure but also be utilised to determine the modifications that occur as a result of diseases, wound healing and age-dependent processes. Moreover, these techniques are often not only used exclusively but also in conjunction with others, as some may provide qualitative observations whereas some are prominent in terms of quantitative results. Furthermore, these techniques vary in terms of their reputation for characterising the ECM and when they were utilised to do this. Some of the more recent techniques including Raman spectroscopy may be even more favourable to use due to their non-invasive properties. However, this is also dependent on the application and what aspect of the ECM that is required to be characterised.


Ways the ECM is employed in tissue engineering Influence on differentiation of MSCs

The importance of the ECM in instructing differentiation of stem cells has been demonstrated at the organ level. Nevertheless, the ability of the ECM to do this is compromised with age. Ageing of the ECM can have detrimental effects via ‘imbalanced proteolytic degradation and the release of free radicals’. It has been shown that ECM derived from young MSCs displays significantly higher levels of protein expression, in contrast to ECM taken from aged MSCs. It is evident that the age of ECM impacts on MSCs, as older MSCs expressed greater pluripotency when seeded onto young ECM. However, the mechanism of why this occurs is still to be answered. Recently, it has been reported that ECM put down by foetal stem cells was superior to ECM

generated by adult stem cells in encouraging cell expansion and chondrogenic differentiation.Such findings indicate that the age of the ECM may impact upon the behaviour of cells. Many other properties of the ECM have been shown to influence the behaviour of cells. Scaffolds with a nanoscale diameter resulted in tenocytes producing their own ECM that resembled the matrix seen during the reparative healing process. Contrastingly, scaffolds with a microscale diameter caused tenocytes to form matrix similar to that seen during the regenerative healing process. Furthermore, it has been indicated that the ECM plays a significant role in various cellular activities including cell migration and proliferation. It has been found that ECM can manipulate the differentiation of MSCs through its stiffness with stem cells changing their properties according to the degree of stiffness of the underlying substrate. This highlights the critical nature of the mechanical signals that are passed on to cells from the ECM, and the importance of the relationship between cells and their environment in determining the commitment to a certain cell lineage. Understanding more about the mechanisms behind this relationship could reveal more detail regarding the age-related differences displayed during the wound healing process. There has been much interest in the influence of different aspects of substrate features over stem cell differentiation, in particular the stiffness or elasticity of a substrate. This relationship between cells and the underlying matrix is referred to as mechanobiology.


As mentioned earlier, as part of its role, the tendon responds to mechanical load. It does this in a variety of ways at the cellular level, changing its ‘gene expression, protein synthesis, and phenotype’. The components involved in the mechanobiology of the cells and their interactions were detailed further above in a previous section.


Different types of ECM scaffolds available to use for tissue engineering applications: (a) natural ECM, for example, collagen; (b) other biomaterials, for example, fibrin, silk (typically in the form of electrospun fibres or as a coating on a 2D substrate); (c) decellularised ECM (stripped of all previous cellular material) and (d) synthetic ECM, for example, polymers (usually in fibres or hydrogels) adapted from Brafman.
Different types of ECM scaffolds available to use for tissue engineering applications:

Regenerative medicine is increasingly becoming a potential therapy to replace original tissue, with tissue engineering providing the method to produce prospective constructs for this therapy. The concept involves the implantation of cells within a scaffold construct along with the required biomolecules. Presently, there are a few examples of such applications in a clinical setting, including artificial skin and the graft materials mentioned. The necessary components for tendon tissue engineering demand specific sourcing of cells, scaffold material, and biomolecules; of particular importance for vascular tissues is the issue of mass transport of oxygen and nutrients1.



1. Kular JK, Basu S, Sharma RI. The extracellular matrix: Structure, composition, age-related differences, tools for analysis and applications for tissue engineering. Journal of Tissue Engineering. January 2014. doi:10.1177/2041731414557112
